CONFAST 3/8" x 3-3/4" Stainless Steel Wedge Anchor (10 per Box)
13 sold in last 24 hours
- Environment: Built for durability, these anchors are designed for use in a wet, submerged environment. Their robust construction ensures longevity, making them perfect for projects anchoring to concrete only, not brick, block or grout.
- Hole Diameter/Bit Diameter: For optimal installation, use an ANSI imperial bit the same diameter as the diameter of the anchor.
- Hardware included: Each anchor comes with the required nut and washer to use on the anchor for installation.
- Secure Hold: The wedge expansion anchor design ensures a dependable and strong hold, ideal for demanding applications.
- Durability: Built tough with rugged stainless steel construction for superior, long-lasting performance.
Tags |
Estimated shipping
Select a product to estimate shipping.Applications
The anchor is made from 304 Stainless Steel. This anchor is designed for use in Concrete only, and should never be used in block or brick base material.
Environment
The anchor is designed for use in a Wet environment.

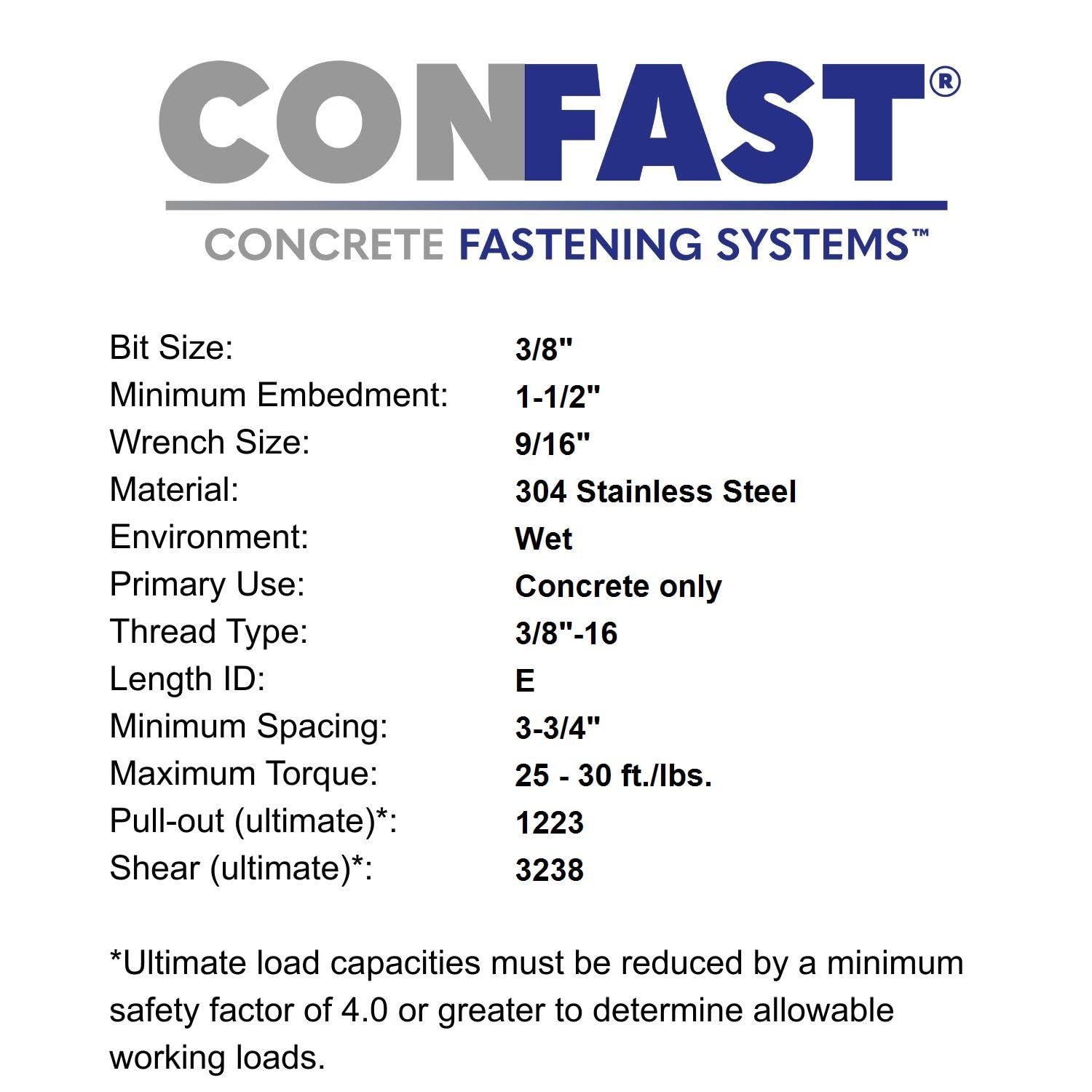

Hole Diameter/Bit Diameter
The anchor requires a 3/8" hole to be drilled in the base material (Concrete only). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
Diameter of Anchor
The diameter of the anchor is 3/8".
Length Anchor
The length of the anchor is 3-3/4"
Thread Length
The length of the threads on the anchor is 2-1/4" in length.
Minimum Embedment
The minimum anchor embedment into the concrete is 1-1/2". Therefore, the anchor must be installed so that a minimum of 1-1/2" of the anchor is embedded into the concrete.
Maximum Fixture Thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-7/8". This will ensure that the minimum embedment of 1-1/2" will be met.
Fixture Hole Diameter
The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/8" diameter anchor requires the hole in the fixture to be 1/2".
Torque Value
To be set properly in the concrete, the anchor must be torqued to between 25 - 30 ft./lbs.
Spacing between Anchors
Each anchor must be spaced a minimum distance of 3-3/4" from each other when measured center to center.
Edge Distance
It is very important not to install the anchor any closer than 1-7/8" from an unsupported edge of the concrete.
| Main Specification | |
|---|---|
| Fabricante | CONFAST |
| Dimensões do item L x W x H | 3.75 x 0.38 x 3.75 inches |
| Diâmetro exterior | 0.38 Inches |
| Marca | Confast |
| UPC | 820274902776 |
| Tipo de Fixador | Wedge |
| Número de Peças | 10 |
| Tamanho do Tópico | 3/8" x 2-1/4" |
| Material | Stainless Steel 304 |
| Cor | Prata |
| Tamanho | 3/8" x 3-3/4" |
| Technical Details | |
| Número da parte | WAS38334-I10 |
| Tipo de Material | Stainless Steel 304 |
| Número de itens | 10 |
| Diâmetro Groove compatível | 0.38 inches |
| Força máxima de shear | 3238 |
| Style | |
| Tipos de Acabamento | 304 Stainless Steel |
| Measurements | |
| Dimensões do Item | 3.75 x 0.38 x 3.75 inches |
| Others | |
| Forma do Item | Wedge or Block |
| Tipo de produto | Wedge Anchors |
| Classificação dos graus | 304 |
| Nome do Tamanho | 3/8" x 3-3/4" |
| Estilo Cabeça de Parafuso | Redonda |
