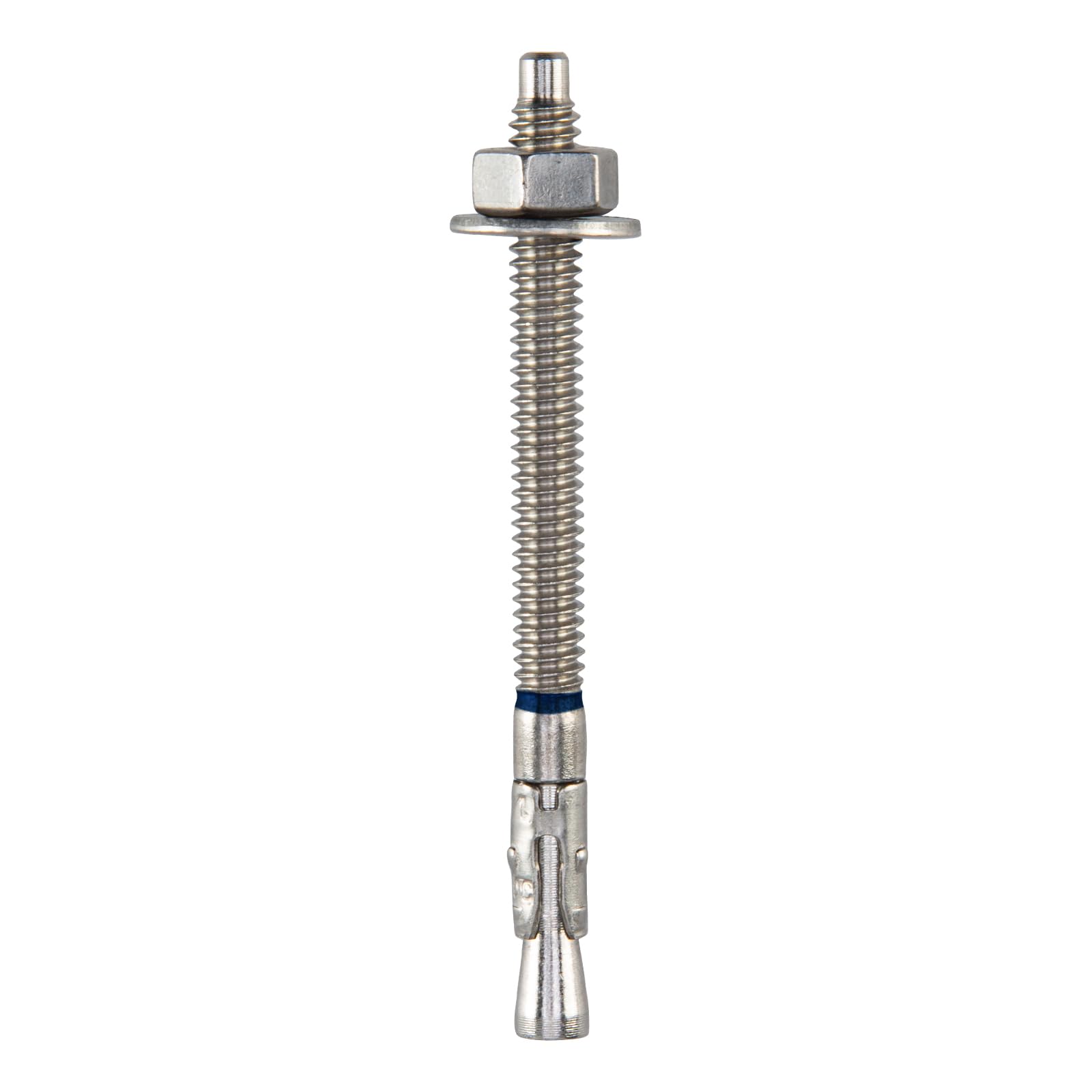

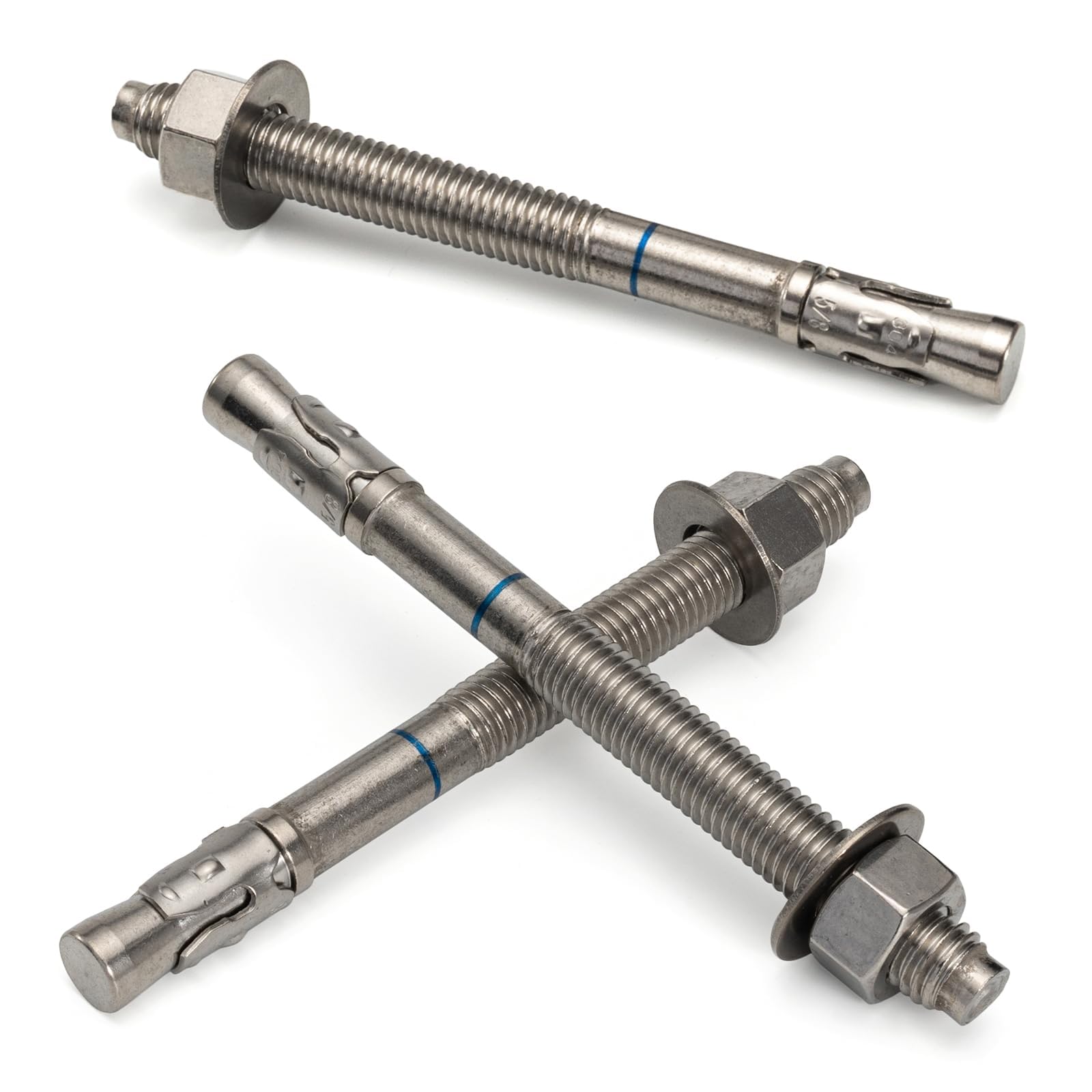

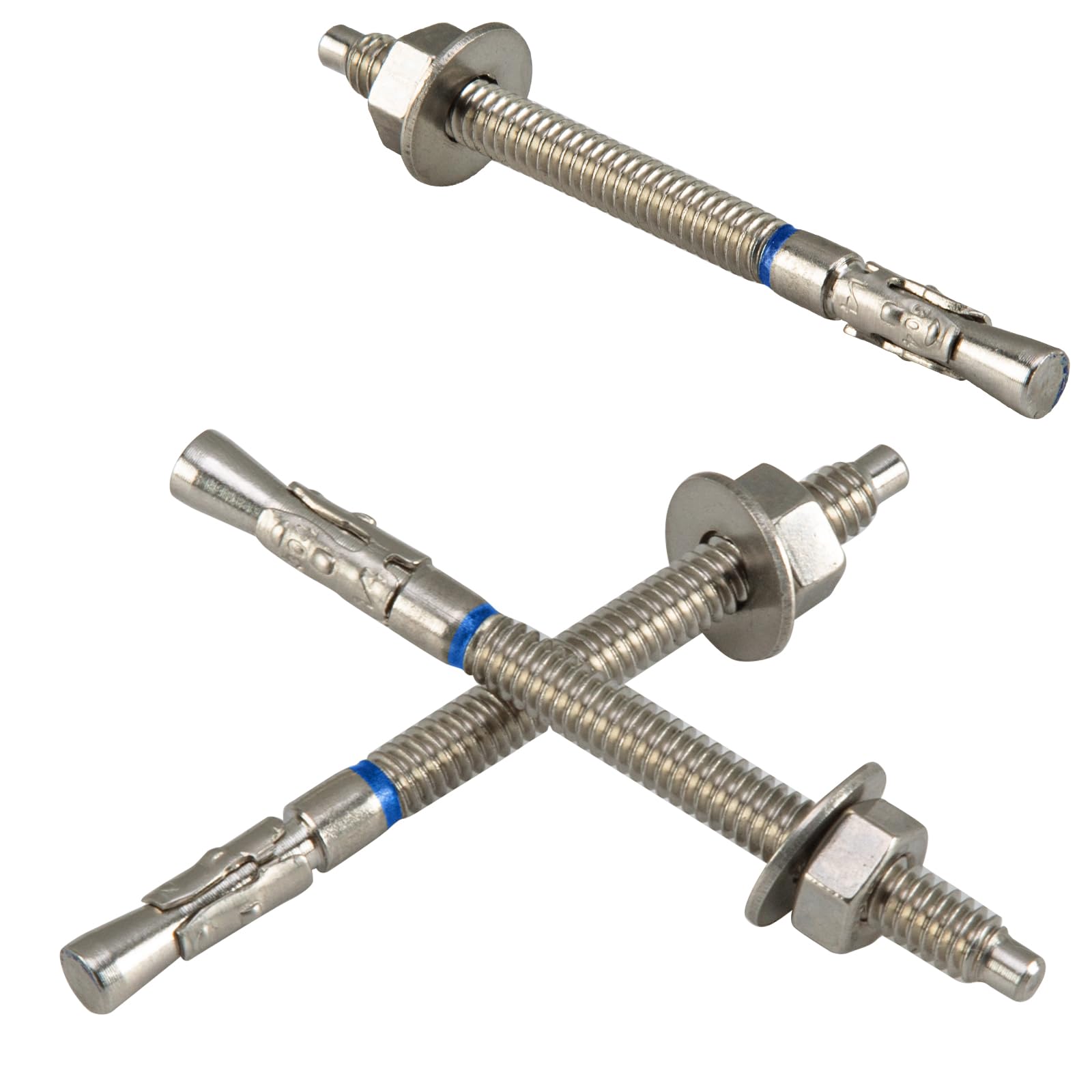

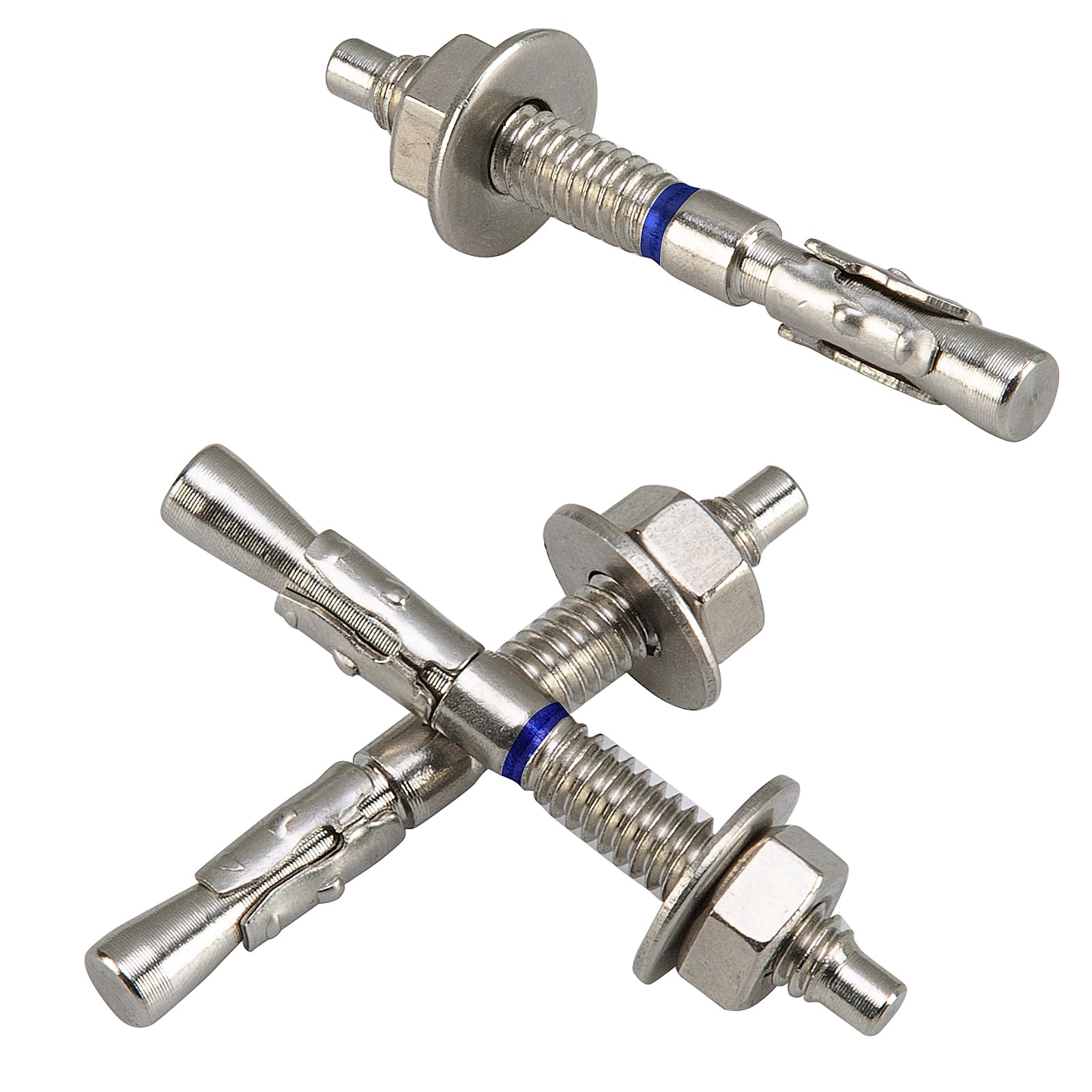

1/4" x 3-1/4" Concrete Anchors (20 Pack) 1/4 inch Wedge Anchors Bolts Stainless Steel
15 sold in last 24 hours

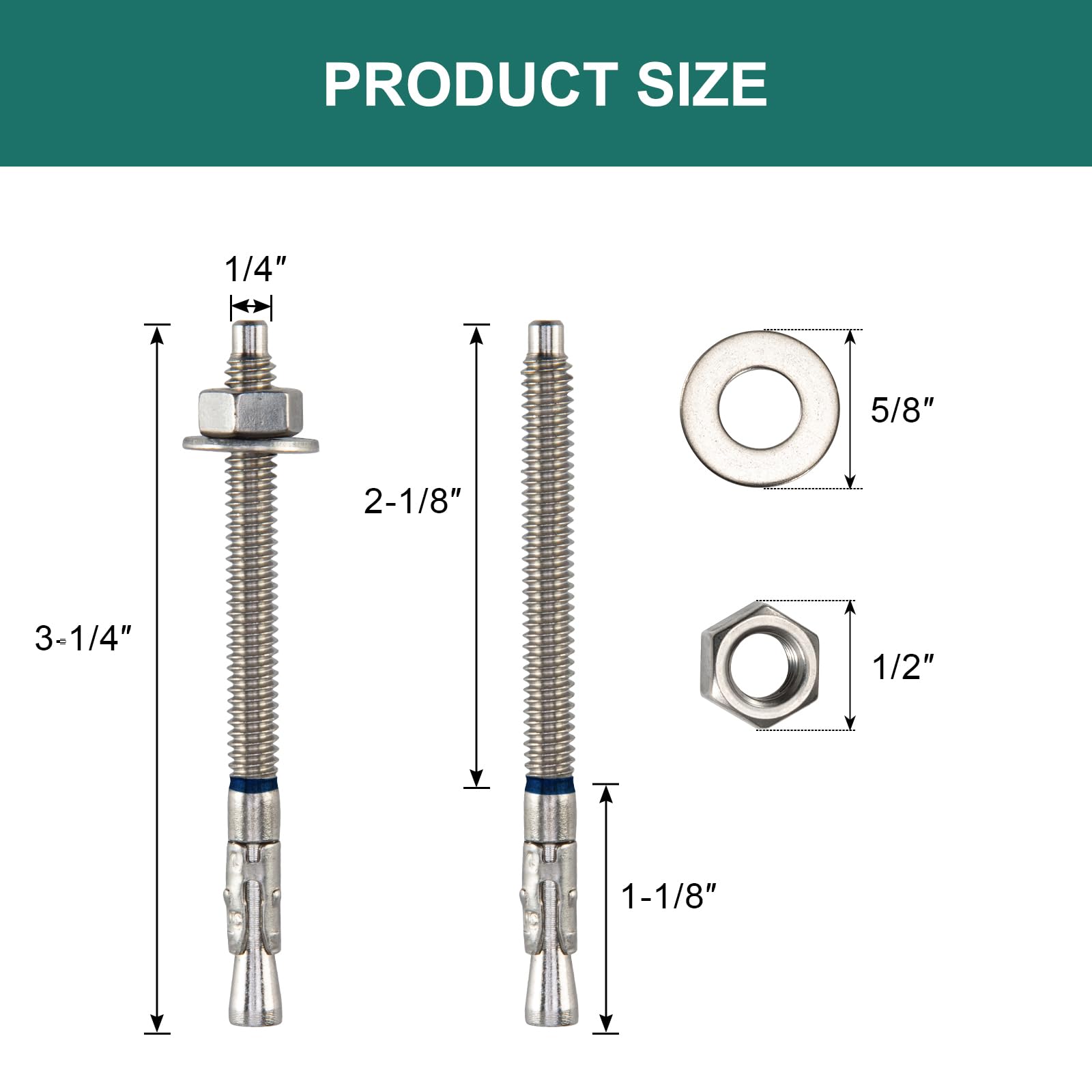

- Anchor Bolts Specifications - Diameter - 1/4", Length - 3-1/4", Qty - 20 pieces
- Heavy Duty Material - Our cement anchor bolts are made of stainless steel, durable and corrosion resistance for long using
- Ideal Applications - Concrete anchor bolts work well for any mounting and structural anchorage purpose in any condition, suitable for applications in solid concrete and cement, Do not use in block or brick base material
- Multi-Purpose - Wedge anchor bolts for concrete are designed for both indoor and outdoor use. Must be inserted for minimum embedment depth to obtain minimum holding values, and comes assembled with nut & washer for your convenience
- Easy to Use - Just drill a hole as big as the diameter of the anchor in concrete (larger holes may cause the bolt to spin when tightening) , remove debris and dust from the hole, hammer the concrete wedge anchors into the hole, then tighten the nut with a wrench to complete the installation
Tags |
Estimated shipping
Select a product to estimate shipping.HROMIGRY Heavy Duty Wedge Concrete Anchors

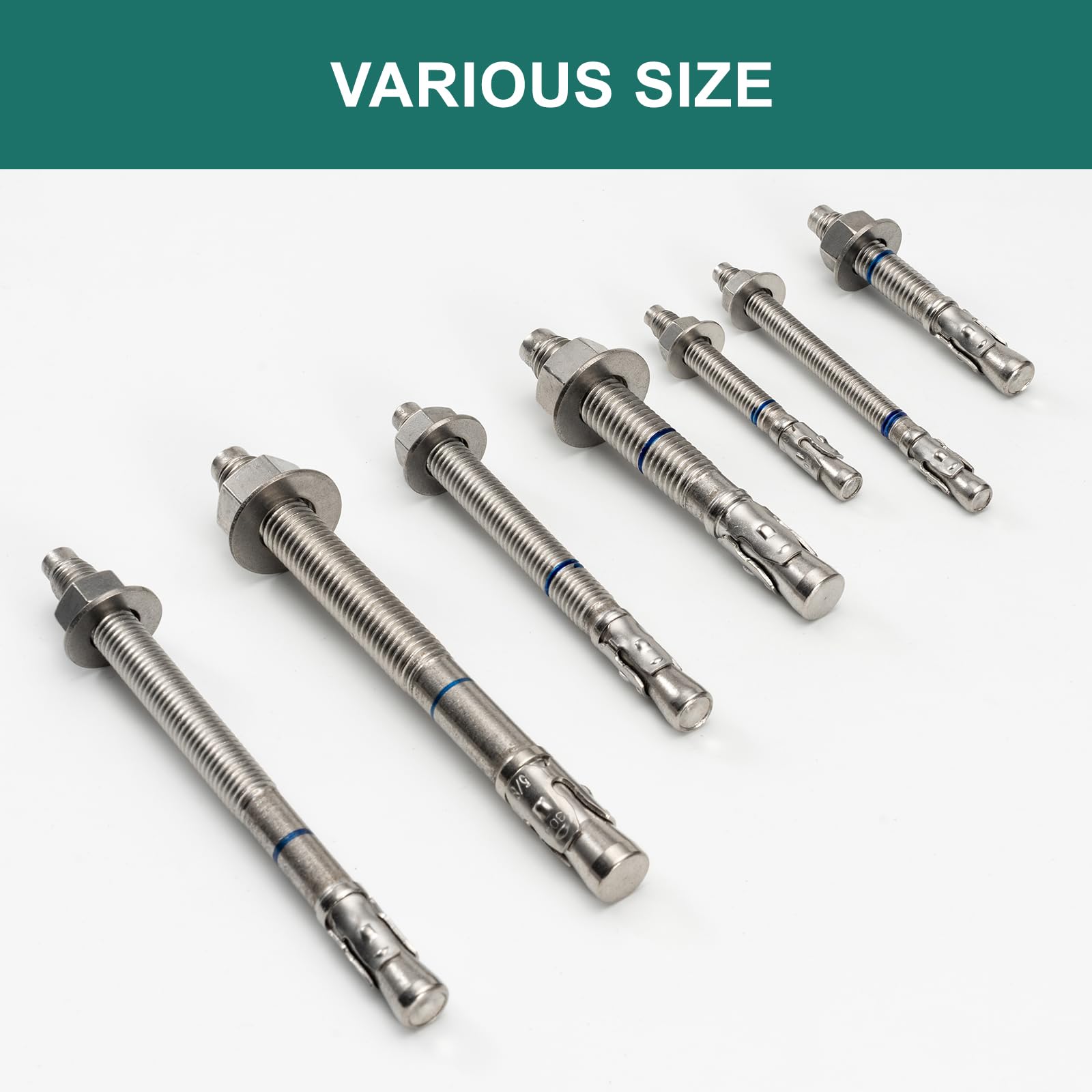

Our wedge anchor bolts for concrete are available in diameters of 1/4", 3/8", 1/2", 5/8", 3/4", 1", and are available in zinc plated carbon steel and stainless steel to make the through bolt resistant to rust.
Installation Instructions
Using the hammer drill to drill a hole in the concrete, which is as big as the diameter of the wedge anchor.
Clean out all the dust and debris of the hole.
Hammer the anchor into the drilled hole to the desired depth.
Tighten the nut with a torque wrench to ensure the bottom portion wedge is expanded in order to lock the anchor in place firmly.
INSTALLATION TIPS:
1. Be sure to drill the hole straight.
2. Thread nut to the desired depth before hammering to avoid damaging the thread and knocking too deep.
3. Once the anchor is inserted, it will not be easily removed due to the expansion clip.
4. Choose the right size drill bit, drill the hole that is the same diameter as the anchor, larger hole may cause the bolt to rotate during tightening.
5. You can drill the hole slightly deeper than the entire length of the anchor, so that if you want to remove the anchored item later you can hammer the anchor down into the hole.
Product details
| Main Specification | |
|---|---|
| Fabricante | Hromigry |
| Número de unidades | 20 Contagem |
| Terminar Exterior | Aço inoxidável |
| Tipo de Metal | Aço inoxidável |
| Estilo de Cabeçalho | Wedge |
| Manufacturer Grade | Heavy-Duty |
| Cobertura do Tópico | Totalmente roscado |
| Diâmetro exterior | 0.25 Inches |
| Marca | Hromigry |
| Tipo de Cabeçalho | Hex |
| Número de itens | 20 |
| Tipo de Fixador | Anchor Bolt |
| Diâmetro do Item | 0,25 polegadas |
| Tamanho do Fixador | 1/4-20 |
| Tamanho do Tópico | 1/4-20 |
| Material | Aço inoxidável |
| Cor | SILVER |
| Tipo de Tópico | UNC |
| Product information | |
| Definir o Nome | 20 |
| Technical Details | |
| Número da parte | MGWA14X314P20SS |
| Tipo de Material | Aço inoxidável |
| Estilo do Tópico | Mão Direita |
| Diâmetro Groove compatível | 0.25 Inches |
| Dureza do Item | Grade 8 |
| Style | |
| Tipos de Acabamento | Hot Dipped Galvanized |
| Measurements | |
| Dimensões do Item | 3.25 x 0.25 x 0.25 inches |
| Others | |
| Tipo de produto | Wedge Anchors |
| Nome do Tamanho | 1/4"x3-1/4" |
| Estilo Cabeça de Parafuso | Wedge |
